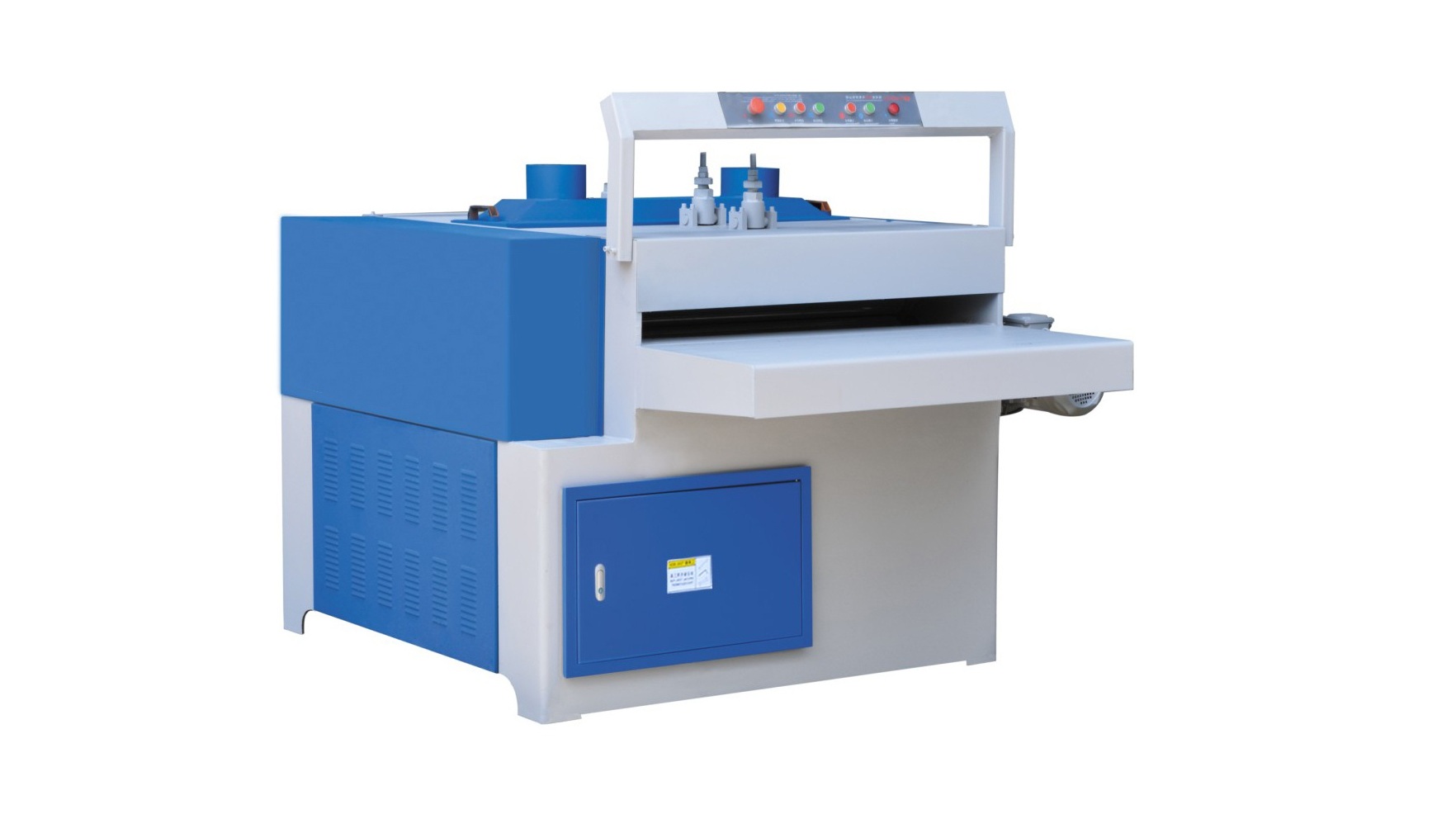

Multi rip saw for slab cutting
Working width: 1250mm, 1000mm, 800mm, 600mm, 500mm
Working thickness: 10-70mm, 10-50mm, 10-25mm
Mini working length: 620mm, 570mm, 500mm, 400mm, 300mm, 150mm
Multi rip saw is equipped with multi circular saw blade on same spindle. Can cut the wide slab into several pieces at the same time. The cutting width can be adjusted accordingly. And the working thickness is from 10-70mm.
| Model | MJ-Q2-1250-70 | MJ-Q2-1000-70 | MJ-Q2-800-70 | MJ-Q2-600-70 | MJ-Q2-600-50 |
| Max working width | 1250mm | 1000mm | 800mm | 600mm | 564mm |
| Mini working width | 100mm | 100mm | 50mm | 50mm | 50mm |
| Working thickness | 10-70mm | 10-70mm | 10-70mm | 10-50mm | 10-50mm |
| Mini working length | 620mm | 620mm | 620mm | 570mm | 500mm |
| Machine power | 32.2kw | 32.2kw | 23.5kw | 19.6kw | 15.75kw |
| Overall size (mm) | 2250x2000x1600 | 2250x1700x1600 | 2250x1500x1600 | 2180x1300x1600 | 1720x1087x1600 |
| Total weight | 1850kg | 1740kg | 1400kg | 1250kg | 620kg |
| Model | MJ-Q1-500-50 | MJ-Q1-500-25-4D | MJ-Q1-500-25-3D | MJ-Q1-500-25-A |
| Max working width | 500mm | 500mm | 500mm | 500mm |
| Mini working width | 50mm | 30mm | 30mm | 30mm |
| Working thickness | 10-50mm | 10-25mm | 10-25mm | 10-25mm |
| Mini working length | 400mm | 300mm | 150mm | 300mm |
| Machine power | 15.75kw | 4.55kw | 4.55kw | 6.6kw |
| Overall size (mm) | 1098x1039x1450 | 1098x1039x1450 | 1470x890x1050 | 1450x890x1323 |
| Total weight | 472kg | 198kg | 225kg | 386kg |
