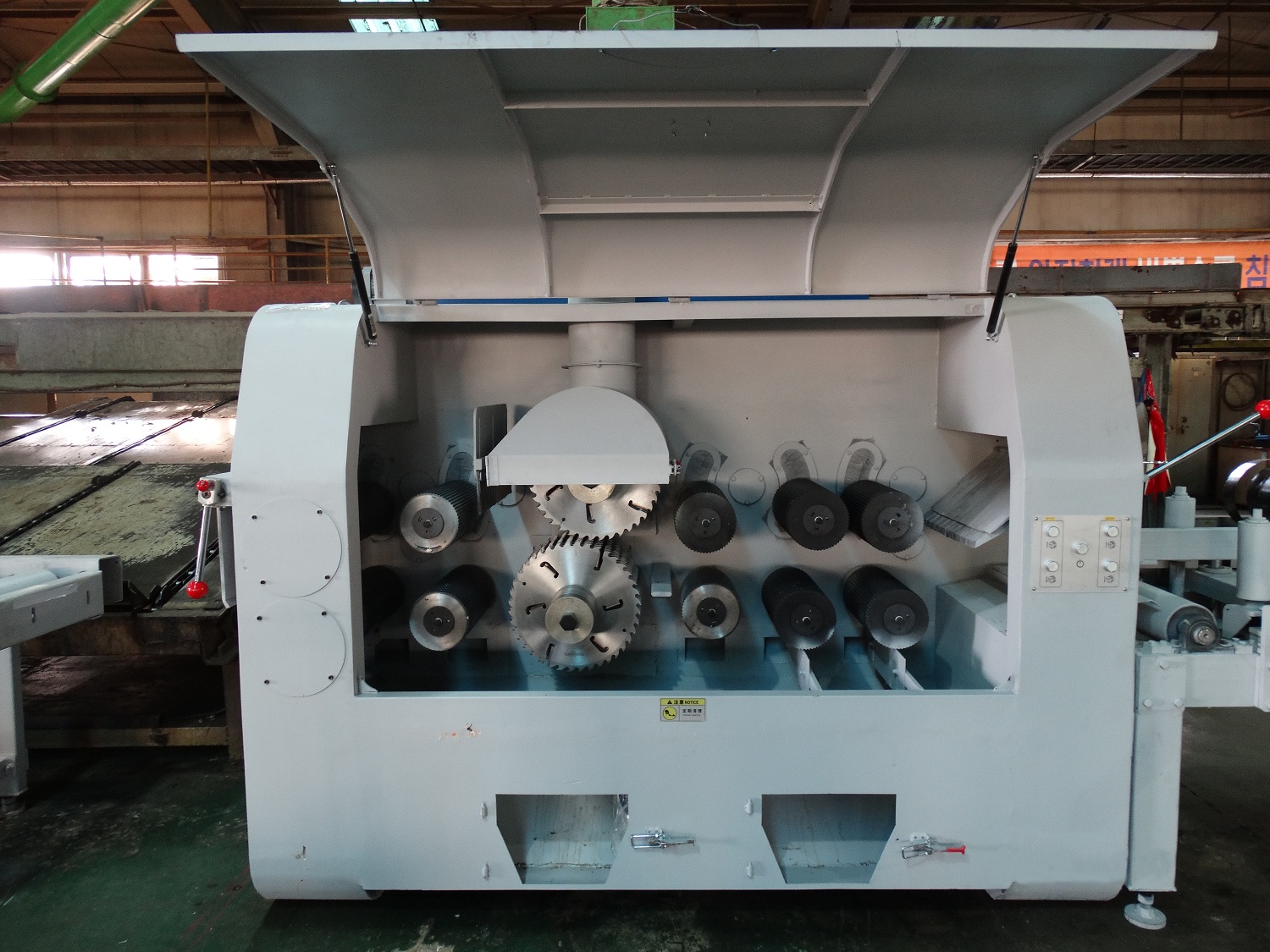

Multi rip saw for timber cutting
Working width: 450mm, 400mm, 350mm, 300mm, 250mm, 200mm
Working thickness: 30-250mm
For timber cutting, there are 4 series multi rip saw: F7, F6, F4 and F3
Each series has different working width and working thickness. Please kindly let us know your timber species, thickness range, length range and width range. What is output size do you need? Then can recommend you suitable model accordingly. We can also supply production line for timber cutting.
| Model | Width (mm) | Thickness (mm) | Mini length (mm) | Speed | Total power (kw) | Overall size (mm) | Total weight (kg) |
| MJ-F7-350-60 MJ-F7-350-80 MJ-F7-350-100 MJ-F7-350-120 MJ-F7-350-160 | 50-350 | 30-60 30-80 40-100 50-120 70-160 | 800 800 1000 1000 1000 | Invertor | 47.15 47.15 57.15 57.15 63.15 | 1690x1650x1650 1690x1650x1450 1860x1958x1550 1860x1958x1750 1895x1958x1750 | 3150 3150 3150 3150 3350 |
| MJ-F7-400-60 MJ-F7-400-80 MJ-F7-400-100 MJ-F7-400-120 MJ-F7-400-160 | 50-400 | 30-60 30-80 40-100 50-120 70-160 | 800 800 1000 1000 1000 | Invertor | 57.15 57.15 57.15 57.15 77.15 | 2200x1700x1750 1690x1650x1450 1860x1958x1750 1860x1958x1750 2100x2200x1800 | 3000 3150 3150 3150 3350 |
| MJ-F6-350-160 MJ-F6-350-200 MJ-F6-350-250 | 80-350 110-350 130-350 | 40-160 60-200 100-250 | 1000 1200 1200 | Invertor | 77.15 85.85 113.85 | 1986x2020x1816 2212x2045x1860 2262x2039x1860 | 3450 3650 3700 |
| MJ-F6-400-160 MJ-F6-400-200 MJ-F6-400-250 | 80-400 110-400 130-400 | 40-160 60-200 100-250 | 1000 1200 1200 | Invertor | 77.15 93.85 113.85 | 1986x2020x1816 2212x2045x1860 2262x2039x1860 | 3650 3750 3700 |
| MJ-F6-450-160 MJ-F6-450-200 MJ-F6-450-250 | 80-450 110-450 130-450 | 40-160 60-200 100-250 | 1000 1200 1200 | Invertor | 93.15 105.85 113.85 | 1986x2020x1816 2212x2045x1860 2262x2039x1860 | 3950 4150 4050 |
| MJ-F4-350-60 MJ-F4-350-80 MJ-F4-350-100 MJ-F4-350-120 MJ-F4-350-160 MJ-F4-350-180 MJ-F4-350-200 | 30-350 40-350 50-350 60-350 80-350 90-350 100-350 | 30-60 40-80 40-100 50-120 70-160 80-180 90-200 | 650 650 700 720 800 1000 1000 | Invertor | 43.1 46.6 56.6 62.6 62.6 76.6 | 1612x1650x1450 1630x1650x1450 1682x1755x1550 1702x1755x1550 1810x1845x1550 2212x1893x1570 2212x1895x1570 | 2200 2200 2280 2600 2750 2900 3100 |
| MJ-F4-400-60 MJ-F4-400-80 MJ-F4-400-100 MJ-F4-400-120 MJ-F4-400-160 MJ-F4-400-180 MJ-F4-400-200 | 30-400 40-400 50-400 60-400 80-400 90-400 100-400 | 30-60 40-80 40-100 50-120 70-160 80-180 90-200 | 650 650 700 720 800 1000 1000 | Invertor | 46.6 56.6 56.6 56.6 76.6 76.6 92.6 | 1612x1650x1450 1630x1650x1450 1682x1755x1550 1702x1755x1550 1810x1845x1550 2212x1893x1570 2212x1895x1570 | 2200 2200 2280 2600 2750 2900 3100 |
| MJ-F4-450-60 MJ-F4-450-80 MJ-F4-450-100 MJ-F4-450-120 MJ-F4-450-160 MJ-F4-450-180 MJ-F4-450-200 | 30-450 40-450 50-450 60-450 80-450 90-450 100-450 | 30-60 40-80 40-100 50-120 70-160 80-180 90-200 | 650 650 700 720 800 1000 1000 | Invertor | 56.6 62.6 62.6 62.6 76.6 92.6 112.6 | 1612x1650x1450 1630x1650x1450 1682x1755x1550 1702x1755x1550 1810x1845x1550 2212x1893x1570 2212x1895x1570 | 2200 2200 2280 2600 2750 2900 3100 |
| MJ-F3-200-60 MJ-F3-200-70 MJ-F3-200-80 MJ-F3-200-100 MJ-F3-200-120 | 50-200 | 40-60 40-70 40-80 60-100 60-120 | 500 500 550 580 620 | Invertor | 31.1 31.1 38.1 38.3 45.3 | 1670x1447x1350 1670x1447x1350 1832x1460x1350 1832x1460x1350 1902x1460x1350 | 1300 1300 1348 1348 1388 |
| MJ-F3-250-60 MJ-F3-250-70 MJ-F3-250-80 MJ-F3-250-100 MJ-F3-250-120 | 50-250 | 40-60 40-70 40-80 60-100 60-120 | 500 500 550 580 620 | Invertor | 38.1 38.1 45.1 55.3 55.3 | 1670x1447x1350 1670x1447x1350 1832x1460x1350 1832x1460x1350 1902x1460x1350 | 1348 1348 1388 1466 1466 |
| MJ-F3-300-60 MJ-F3-300-70 MJ-F3-300-80 MJ-F3-300-100 MJ-F3-300-120 | 50-300 | 40-60 40-70 40-80 60-100 60-120 | 500 500 550 580 620 | Invertor | 45.1 45.1 55.1 55.3 61.3 | 1670x1447x1350 1670x1447x1350 1832x1460x1350 1832x1460x1350 1902x1460x1350 | 1388 1388 1466 1552 1552 |
Short timber multi rip saw is designed for short or narrow workpiece cutting.
MJ200B: Working length min 300mm, Width 10-200mm, Thickness 5-60mm , feeding speed 4-20m/min
MJ200D: Working length min 80mm, Width 5-200mm, Thickness 5-60mm , feeding speed 4-20m/min
