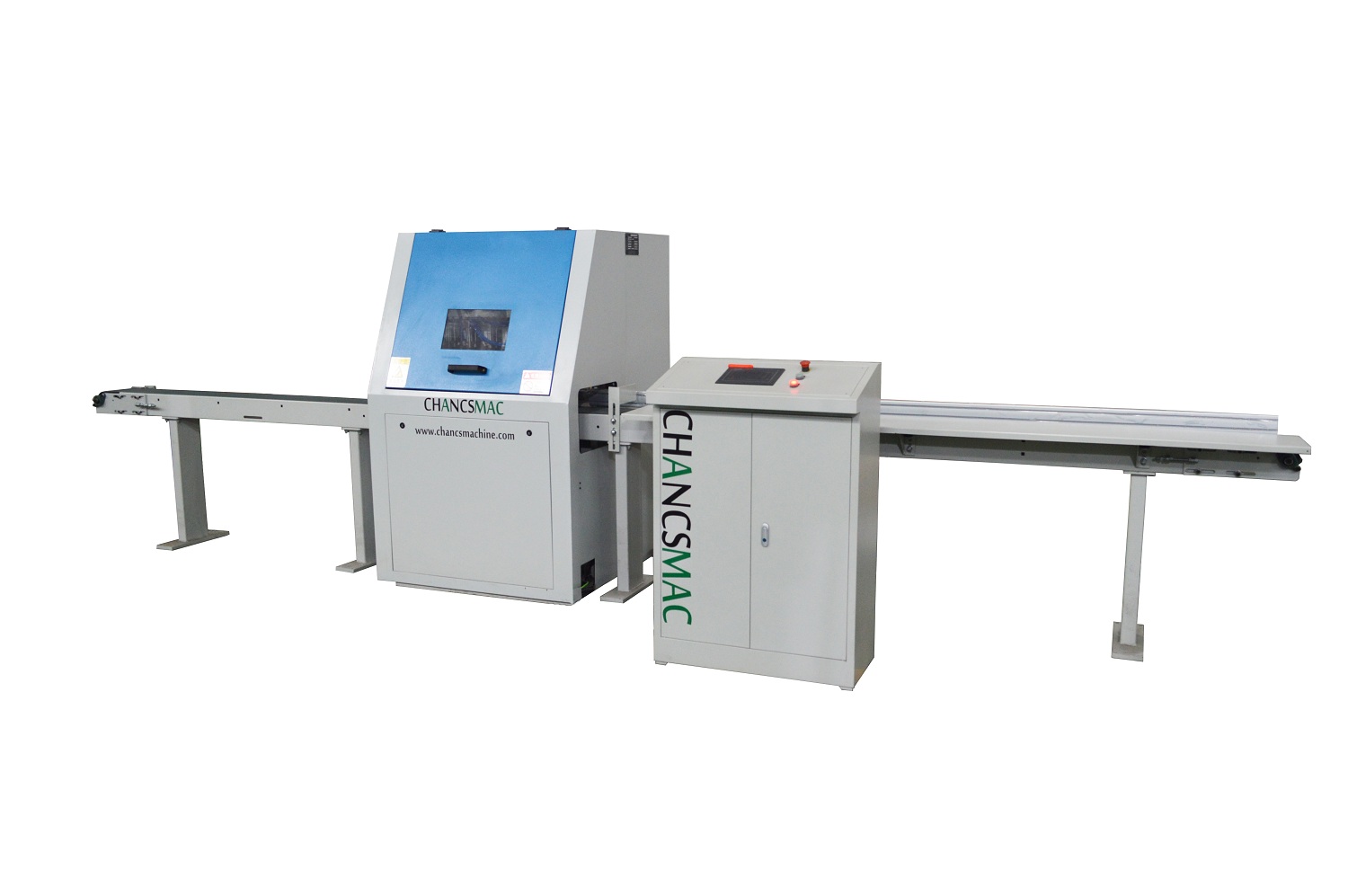

Fast cross cutting saw
Inquiry
Optimal cross cutting saw is also called optimal cutting saw, optimal cut off saw. Mainly are used for finger joint panel material preparation. There are several types of optimal cross cutting saw.
1. Fast cross cutting saw with simple optimal software
2. Optimal cross cutting saw with statistical analysis (with kicker or without)
3. Optimal cross cutting saw with scanner
This video is showing fast cross cutting saw, which equips fluorescence sensor can recognize marker to do defects cutting, two ends trimming, size cutting.
- SIEMENS controller (Imported from German)
- SCHNEIDER contactors (France brand)
- SICK sensors (German brand)
- SIEMENS motors and drivers (Imported from German)
- Airtac cylinders and magnetic valve
| Model | Fastcut 80 | Fastcut 100 | Fastcut 200 |
| Feeding length | 200- infinite | 400- infinite | 400- infinite |
| Feeding width | 10-100mm | 20-200mm | 20-200mm |
| Feeding thickness | 5-50mm | 8-90mm | 8-90mm |
| Cross section | Max 80x30mm Max 100x20mm | Max 180x50mm Max 120x80mm | Max 180x50mm Max 120x80mm |
| Mini length after cutting | 10mm | 10mm | 10mm |
| Cutting method | Servo driven (SIEMENS) | Servo driven (SIEMENS) | Servo driven (SIEMENS) |
| Bend of slats in all direction | Max 10mm/m | Max 10mm/m | Max 10mm/m |
| Thickness tolerance | ±10mm | ±3mm | ±3mm |
| Cutting tolerance | ±1mm | ±1mm | ±1mm |
| Cutting cycle | 0.15-0.5s | 0.15-0.3s | 0.15-0.3s |
| Feeding method | Servo driven (SIEMENS) | Servo driven (SIEMENS) | Servo driven (SIEMENS) |
| Processing specification | 10 | 1 | 10 |
| Numbers of list | 2 | 1 | 6 |
| Total power | 12KW | 18KW | 18KW |
| Air pressure requirement | 0.6-0.8 Mpa | 0.6-0.8 Mpa | 0.6-0.8 Mpa |
| Feeding speed | 300m/min | 300m/min | 300m/min |
| Control system | SIEMENS | SIEMENS | SIEMENS |
| Total length | 5m | 7-9m | 7-9m |
| Weight | 1600kg | 2000kg | 2500kg |
| Prior to long slats cutting | √ | √ | √ |
| More timber yield | √ | √ | √ |
| Comprehensive optimizing | √ | × | √ |
| Sequence cutting | √ | √ | √ |
| Defects cutting | √ | √ | √ |
| Grades cutting | × | × | × |
| Number cutting | √ | √ | √ |
| Independent measuring station | × | × | × |
| Numbers of kicker | x | × | × |
