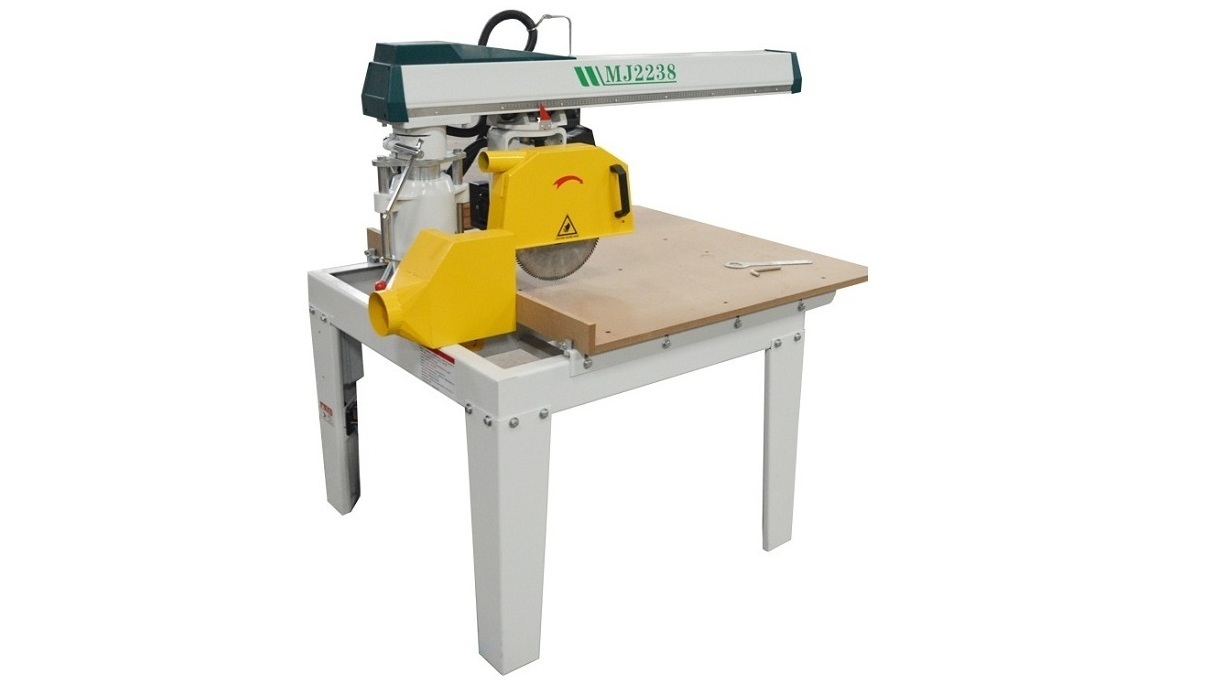

Radial arm saw
Working width: 600mm, 800mm, 900mm
Motor power: 3KW
Cutting height: 110mm
Saw blade diameter: 305mm
Radial arm saw is also called universal hand saw, hand saw or radial arm cutting saw, it can be used to cut wood, plastic, food as well as other kinds of material. The cutting head can be transformed with different angle for material cutting. Easy and convenient to operate. There are mainly different cutting width: 600mm, 800mm and 900mm. The support arm is designed with casting aluminum allay, light and precision.
| Model | MJ2236 | MJ2238 | MJ2239 |
| Voltage | 3phase 380V/50Hz | 3phase 380V/50Hz | 3phase 380V/50Hz |
| Spindle speed | 2840r/min | 2840r/min | 2840r/min |
| Max cutting width | 600mm | 800mm | 900mm |
| Max cutting height | 110mm | 110mm | 110mm |
| Motor power | 3KW | 3KW | 3KW |
| Saw blade diameter | 305mm | 305mm | 305mm |
| Working table size | 1250x1100x1420mm | 1450x1100x1420mm | 1550x1100x1420mm |
| Machine weight | 230kg | 240kg | 250kg |
| Packing | Plywood box | Plywood box | Plywood box |
