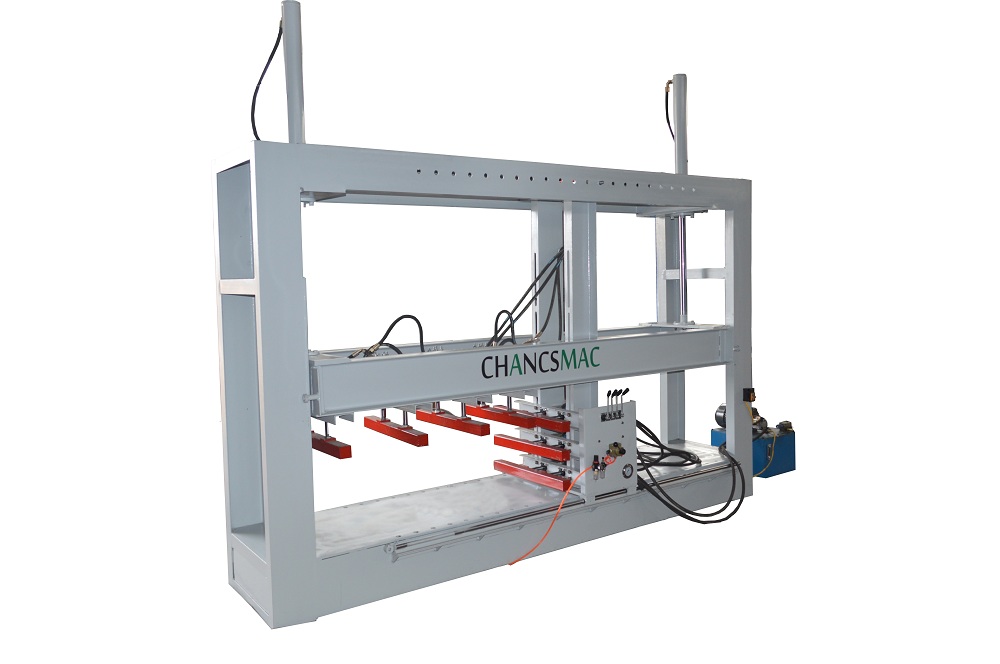

Hydraulic case assembly machine
Working table size: 2500x700mm
Max working height: 1100mm
Pressure type: Hydraulic pressure with 3 direction
Case assembly machine is also called cabinet assembly machine. It is used for cabinet/cupboard, closet/wardrobe assembly. 3 sides pressure all are applied with hydraulic system, which can make sure the sufficient pressure to well connect. Max working length: 2500mm. Max. Working width 700mm. Max working height is 1300mm.
| Model | AP2507-CH |
| Voltage | 380V, 50Hz |
| Working table size (Length x width x height) | 2500x700x1100mm |
| Hydraulic power | 4KW |
| Table lifting cylinder | 2 pcs |
| Top pressure cylinder | 8 pcs |
| Side cylinder | 3 pcs |
| Overall size | 3420x900x2250mm |
| Total weight | 1000kg |
