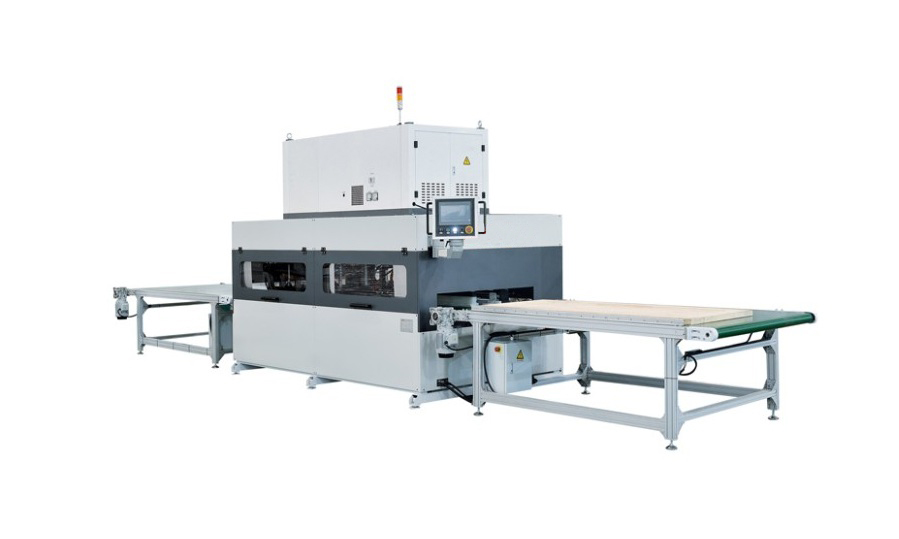

Conveyor type high frequency door assembly machine
Cycle time: Within 1 min
heating power: 10-20KW
Max working size: 2500x1100mm
Mini working size: 1800x600mm
Conveyor type high frequency door assembly machine applied heavy duty SIEMENS servo motor and driver to adjust the table size to meet different doors assembly (90 degree connection with tenon). Once operator type the door size, SIEMENS PLC will auto adjust the working table size and locate the heating area.
Then high frequency power will heat the connection area and finish one door within 1 min. It can connect with production line for continuously door making.
System can stock 20 groups of door size and machine working data.
| Model | HFAM-2511C-CH |
| Max working size | 2500x1100mm |
| Mini working size | 1800x600mm |
| Working thickness | Below 60mm |
| High frequency power | 10-20KW |
| Driving type | Servo motor + Servo driver (SIEMENS brand) |
| Leading way | Precision linger guide + ball screw |
| Feeding way | Conveyor type (Go through) |
| Control type | PLC auto (SIEMENS brand) |
| Overall size | 8000x2100x3000mm |
| Total weight | 1800kg |
