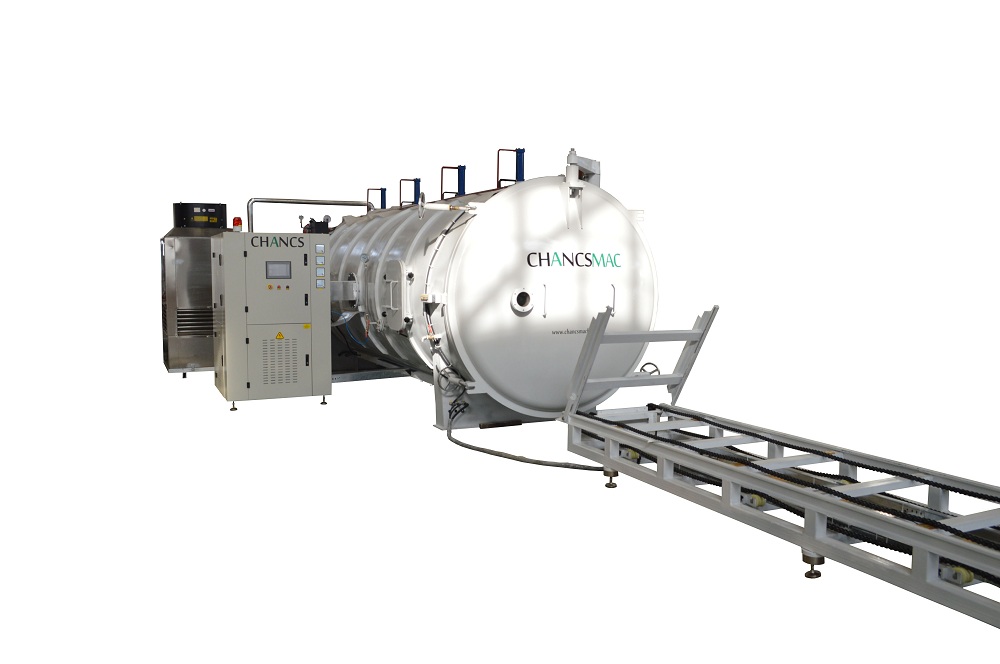

6CBM High frequency vacuum wood dryer
6CBM High Frequency Vacuum Timber Dryer
1. Introduction:
HF vacuum wood dryer also named high frequency vacuum timber dryer, high frequency kiln dryer, hf wood dryer. It is a kind of new timber drying equipment. Both HF dielectric heating and vacuum low temperature technology are applied to make sure drying speed and timber quality together.
2. Characters of HF vacuum timber dryer:
1).High frequency internal heating make sure timber drying quickly and evenly.
2).Vacuum system guarantees low temperature timber drying safely.
3).Machine only needs electricity (no boiler), no pollution.
4).HF power is the good killer for worm and bacteria in the timber.
5).Covering less space, less costs and convenient than conventional kiln dryer. High frequency vacuum timber dryer is the best choice for hard wood (like oak), thick wood (like beam), expensive wood (like rosewood) and floor drying.
Model | HFVD-3-CH | HFVD-4-CH | HFVD-6-CH | HFVD-10-CH | HFVD-14-CH |
Power | 20KW | 30KW | 40KW | 50KW | 80KW |
Capacity | 3CBM | 4CBM | 6CBM | 10CBM | 14CBM |
Wood loading size | 3x1x1m | 4x1x1m | 6x1x1m | 6×1.3×1.3m | 8×1.3×1.38m |
Feeding table | Including | Including | Including | Including | Including |
Control type | PLC auto | PLC auto | PLC auto | PLC auto | PLC auto |
Max Vacuum | -0.092Mpa | -0.092Mpa | -0.092Mpa | -0.092Mpa | -0.092Mpa |
Pressure on the top | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Total weight | 4.5T | 5T | 6T | 8T | 11T |
Overall size | 8x4x2.7m | 10x4x2.7m | 15x4x2.7m | 15x4x3m | 19×4.5x3m |
Control panel Different data inside machine
Hydraulic system on the tank top Hydraulic system + stainless press to keep timber flat
Stable feeding system Sealing + Shielding + safety door switch
