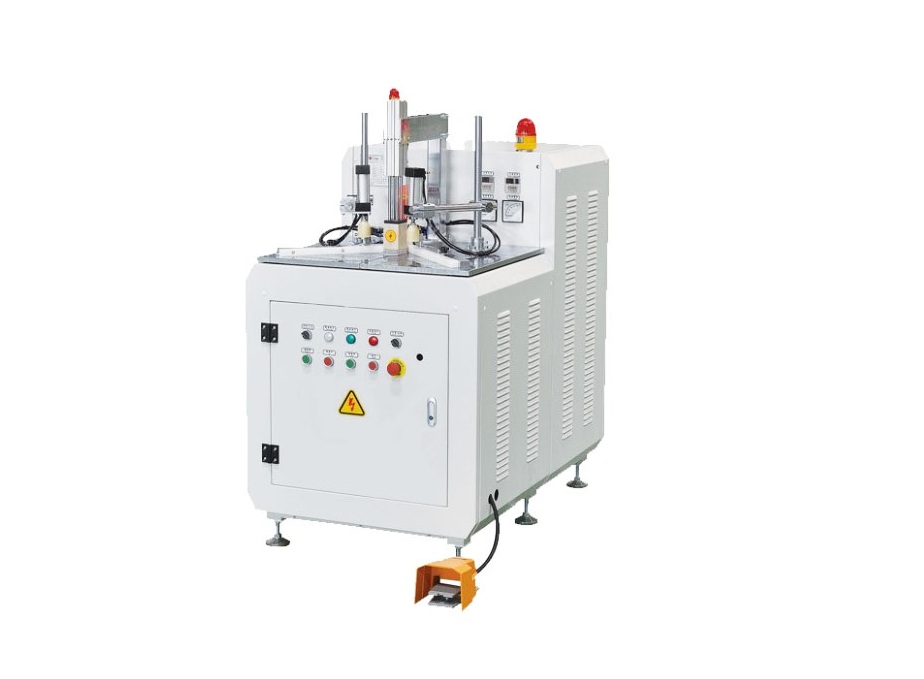

Wood corner joining machine is also named HF corner jointer, high frequency corning jointing machine. It is applied high frequency dielectric heating technology, which only heats the glue line, safely and efficiently. Different angle of wooden frame/MDF frame, PVC wrapped, paper wrapped frame and painted frame can be assembled 5-10 seconds, which can help customer improve the efficiency and save labor costs. It does not need nail. Can make sure the good looking of frame. Widely used for photo frame, mirror frame, cabinet door, and closet door assembly.
Features:
- Free adjustment working table can meet different angle frame corner joining
- PLC control the whole process automatically. Convenient and easy to operate
- International electric components, stable and durable
- Humanization design on foot pad control: One more choice besides PLC auto control. When join long and big frame, can set hands free to hold the frame.
| Model | HFCJ-13-CH | HFCJ-13-S-CH |
| Voltage | Single phase AC 220V 50Hz | Single phase AC 220V 50Hz |
| Power | 3-5KW | 3-5KW |
| Heating time | 5-10 seconds | 5-10 seconds |
| Frequency | 13.56MHz | 13.56MHz |
| Stapler function | Not including | Including |
| Overall size | 800x1200x1250mm | 1150x1200x1250mm |
| Total weight | 200kg | 250kg |
This type can do both types of jobs: Stapler on the left side. Or apply high frequency heating on the right side.
Customer can select the machine working type according to production technology.
