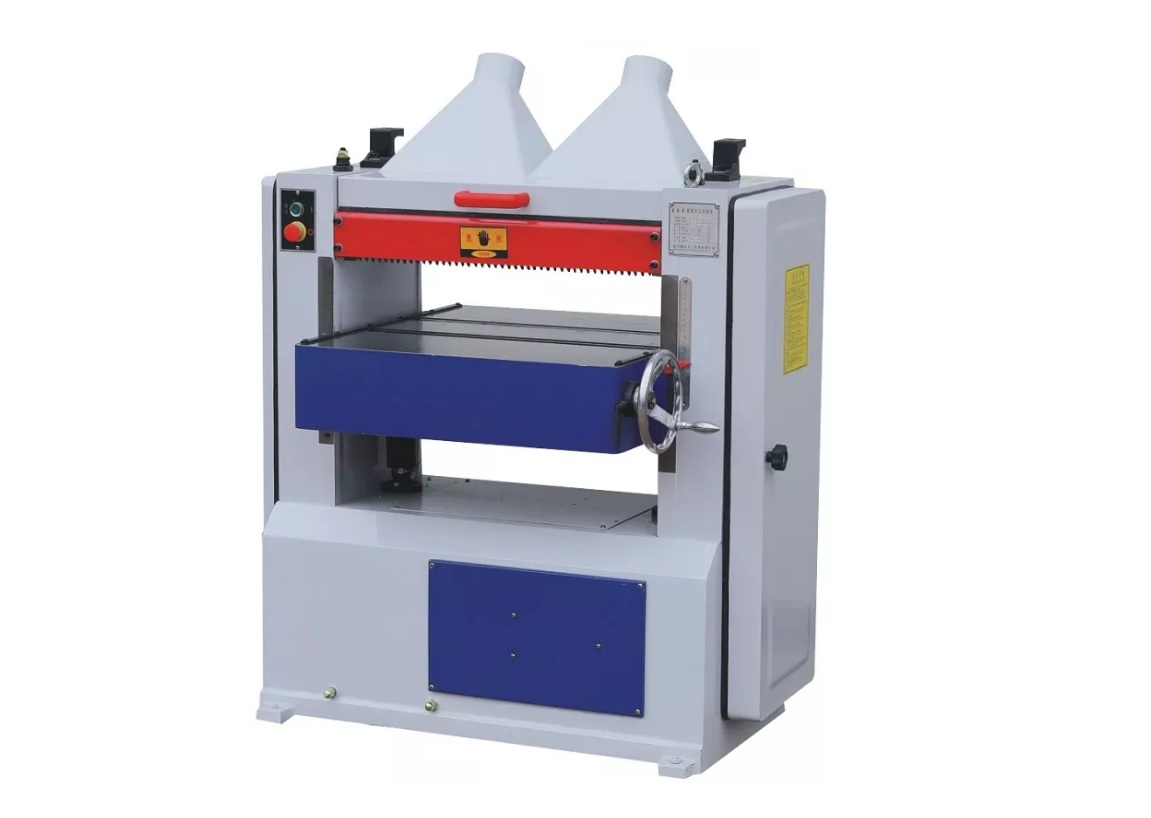

Single Side Planer
Working width: 400mm, 500mm, 630mm, 830mm
Max working thickness: 180mm
Mini working length: 220mm
Single side planer is also named thicknesser, thickness planer, pressing planer, or thicknesser planer. It is used to process the timber or wood top surface and get wanted thickness with smooth surface. It is necessary machine for woodworking. Single side planer can also be used for other material processing such as PVC, PP etc
| Model | MB104H/MB104J | MB105H/ MB105J | MB106H/ MB106J | MB108J |
| Max working width | 400mm | 500mm | 630mm | 830mm |
| Max working thickness | 180mm | 180mm | 180mm | 180mm |
| Mini working thickness | 5mm | 5mm | 5mm | 5mm |
| Mini working length | 220mm | 220mm | 220mm | 220mm |
| Max cutting depth | 4mm | 4mm | 4mm | 4mm |
| Spindle speed | 5000r/min | 5000r/min | 5000r/min | 5000r/min |
| Feeding speed | 9m/6.5m per min | 9m/6.5m per min | 9m/6.5m per min | 9m/6.5m per min |
| Motor power | 4KW | 5.5KW | 7.5KW | 7.5KW |
| Total weight | 420kg | 460kg | 550kg | 680kg |
