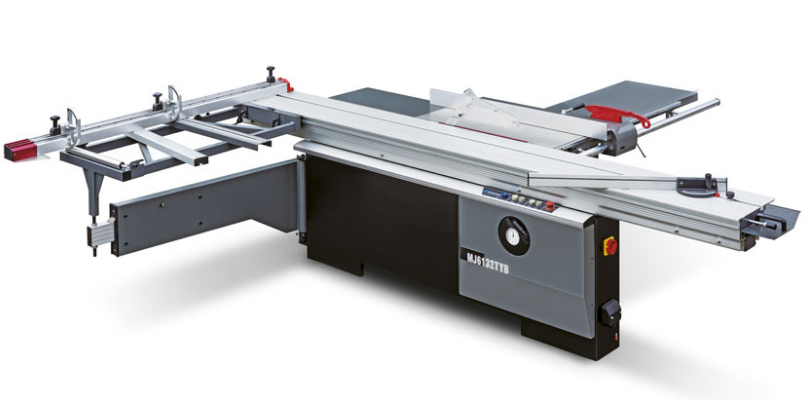

Precision panel saw
Sliding table size: 3200x360mm
Cutting height: 80mm
Cutting angle: 0-45°
Power: Main motor 5.5kw + scoring saw 0.75kw
| Model | MJ6132TY | MJ6132TYB | MJ6132TYBD |
| Sliding table size | 3200x370mm | 3200x360mm | 3200x370mm |
| Gross cut capacity | 3200mm | 3200mm | 3200mm |
| Width of cut between saw blade and rip fence | 1250mm | 1250mm | 1250mm |
| Saw blade diameter | φ300mm(φ250-φ315) | φ300mm(φ250-φ315) | φ300mm(φ250-φ315) |
| Cutting height | 80mm | 80mm | 80mm |
| Diameter of guide shaft spindle | φ55 mm | φ55 mm | φ55 mm |
| Speed of main saw spindle | 4000/6000rpm | 4000/6000rpm | 4000/6000rpm |
| Main spindle diameter | φ30mm | φ30mm | φ30mm |
| Tilting saw blade | 0-45° | 0-45° | 0-45° |
| Main motor | 5.5kw | 5.5kw | 5.5kw |
| Scoring saw blade diameter | φ120mm | φ120mm | φ120mm |
| Speed of scoring saw | 8000r/min | 8000r/min | 8000r/min |
| Scoring spindle diameter | φ20mm | φ20mm | φ20mm |
| Scoring saw motor | 0.75kw | 0.75kw | 0.75kw |
| Total weight Plywood packing/ net weight | 765kg/ 645kg | 765kg/ 645kg | 765kg/ 645kg |
| Overall size | 3250x3390x870mm | 3250x3390x870mm | 3250x3390x870mm |
| Model | MJ6116TYB | MJ6128Y | SMV8D-X (Touch screen) |
| Sliding table size | 1600x360mm | 2800x330mm | 3200x435mm |
| Gross cut capacity | 1600mm | 2800mm | 3200mm |
| Width of cut between saw blade and rip fence | 1250mm | 1250mm | 1300mm (Servo driving) |
| Saw blade diameter | φ300mm(φ250-φ315) | φ300mm(φ250-φ315) | φ300mm(φ250-φ400) |
| Cutting height | 80mm | 65mm | 80mm (Electrical lifting) |
| Diameter of guide shaft spindle | φ55 mm | φ30 mm | φ55 mm |
| Speed of main saw spindle | 4000/6000rpm | 3000/4000/6000rpm | 3000/4000/5000rpm |
| Main spindle diameter | φ30mm | φ30mm | φ30mm |
| Tilting saw blade | 45° | 90° | 0-45° (Electrical tilting) |
| Main motor | 4kw | 5.5kw | 5.5kw |
| Scoring saw blade diameter | φ120mm | φ120mm | φ120mm |
| Speed of scoring saw | 8000r/min | 8000r/min | 8000r/min |
| Scoring spindle diameter | φ20mm | φ20mm | φ20mm |
| Scoring saw motor | 0.75kw | 0.75kw | 0.75kw |
| Total weight Plywood packing/ net weight | 573kg/ 500kg | 690kg/ 580kg | 1200kg/ 1080kg |
| Overall size | 1650x250x880mm | 2900x3360x840mm | 3350x3600x900mm |
