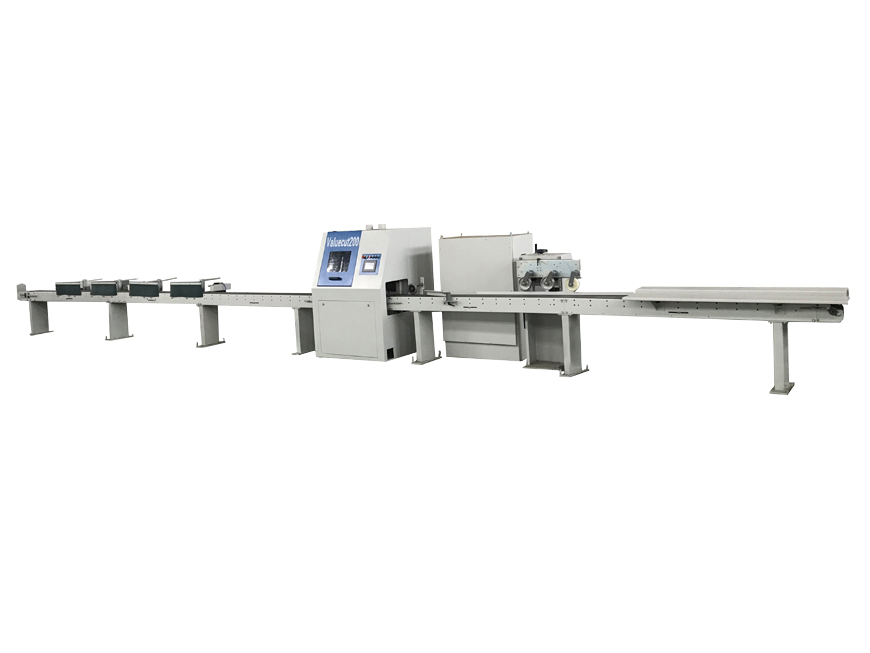

Optimal cutting saw
Inquiry
Optimal cutting saw is also called optimizing cutting saw or optimal cross cut off saw. It is used to cut the wood slats defects for finger joint panel or furniture panel.
Our machine applied powerful software optimizing, accurate positioning. Real-time statistical analysis. Wood material yield statistics to help user make full use of wood and cut the wood in max value.
- There are 5 feeding rollers and feeding belt inside machine
- Independent measuring station. Full set optimized system, with feed-in tracking system. Servo motor control the feeding, tracking and cutting. There are 200 groups cutting list in the system, which can work multiple cutting tasks at the same time. And each group contents 200-300 kinds of cutting specification
- This set value cut type can replace 6-10 sets traditional manual type cross cutting saw
- Machine applied SIEMENS control system. (Made in Germany)
- Sensor imported from SICK
- Air cylinder, magnetic valve are imported from Italy or Taiwan
- Friendly human machine interface
| Model | Valuecut 100 | Valuecut 200 | Valuecut 300 |
| Feeding length | 300-6300mm | 300-6300mm | 300-6300mm |
| Feeding width | 10-200mm | 10-200mm | 10-200mm |
| Feeding thickness | 12-80mm | 12-80mm | 12-80mm |
| Cross section | Max 180x50mm Max 120x80mm | Max 180x50mm Max 120x80mm | Max 180x50mm Max 120x80mm |
| Mini length after cutting | 10mm | 10mm | 10mm |
| Cutting method | Servo driven (SIEMENS) | Servo driven (SIEMENS) | Servo driven (SIEMENS) |
| Bend of slats in all direction | Max 10mm/m | Max 10mm/m | Max 10mm/m |
| Thickness tolerance | ±3mm | ±3mm | ±3mm |
| Cutting tolerance | ±1mm | ±1mm | ±1mm |
| Cutting cycle | 0.15-0.3s | 0.15-0.3s | 0.15-0.3s |
| Feeding method | Servo driven (SIEMENS) | Servo driven (SIEMENS) | Servo driven (SIEMENS) |
| Processing specification | 20 | 30 | 20-200 |
| Numbers of list | 6 | 20 | 200 |
| Total power | 18KW | 18KW | 18KW |
| Air pressure requirement | 0.6-0.8 Mpa | 0.6-0.8 Mpa | 0.6-0.8 Mpa |
| Feeding speed | 300m/min | 300m/min | 300m/min |
| Control system | SIEMENS | SIEMENS | SIEMENS |
| Total length | 11-17m | 11-17m | 11-17m |
| Weight | 2500kg | 2800kg | 3000kg |
| Prior to long slats cutting | √ | √ | √ |
| More timber yield | √ | ||
| Comprehensive optimizing | √ | √ | √ |
| Sequence cutting | √ | √ | √ |
| Defects cutting | √ | √ | √ |
| Grades cutting | × | √ | √ |
| Number cutting | × | × | √ |
| Independent measuring station | √ | √ | √ |
| Numbers of kicker | 2 | 4 | 6 |
