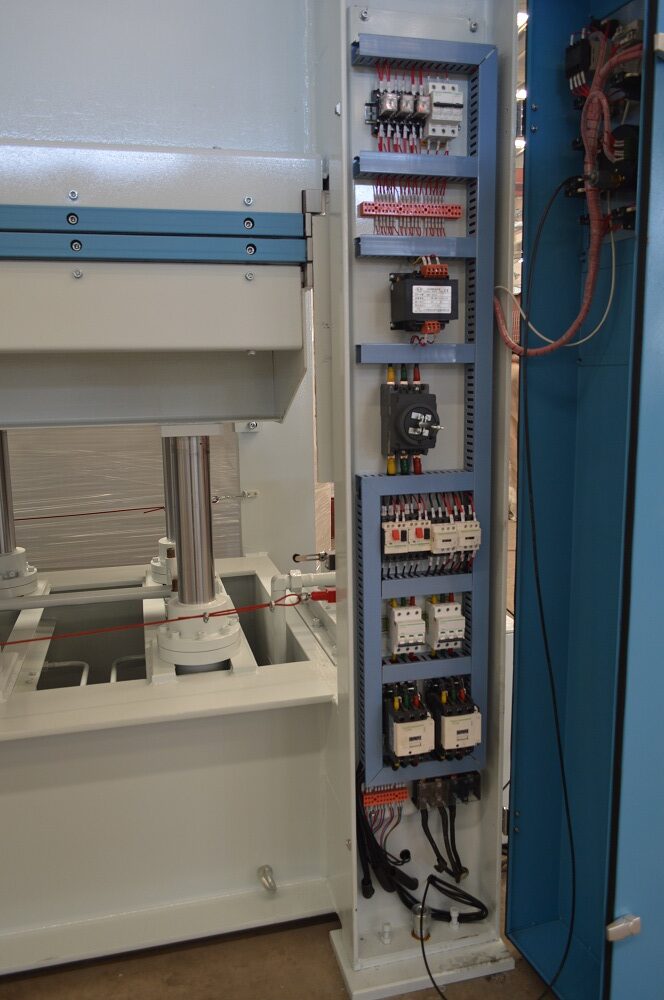

Multi layer hot press
Working table size: 2500x1300mm, 3000x1300mm, 4000x1300mm
Working layers: 3 layers, 5 layers
| Model | BY214x8/10(3)H1RC | BY214x8/12(3)H1RC | BY214x8/16(3)H1RC |
| Total pressure | 100T | 120T | 160T |
| Working table size | 2500×1300 | 2500×1300 | 2500×1300 |
| Max pressure | 3.1kgf/cm2 | 3.7kgf/cm2 | 4.9kgf/cm2 |
| Working layer | 3 layer (4 platens) | 3 layer (4 platens) | 3 layer (4 platens) |
| Opening/daylight | 120mm | 120mm | 120mm |
| Cylinder | 6-Φ85mm | 8-Φ85mm | 10-Φ85mm |
| Heating method | Electrical heating with thermal oil | Electrical heating with thermal oil | Electrical heating with thermal oil |
| Platen opening way | Automatic | Automatic | Automatic |
| Installed power | 52.75KW | 52.75KW | 52.75KW |
| Overall size | 3570x1660x2010mm | 3650x1710x2110mm | 3650x1710x2110mm |
| Weight | 6900kg | 7500kg | 7600kg |
| Model | BY214x9/10(3)H1RC | BY214x9/12(3)H1RC | BY214x9/16(3)H1RC |
| Total pressure | 100T | 120T | 160T |
| Working table size | 3000×1300 | 3000×1300 | 3000×1300 |
| Max pressure | 2.6kgf/cm2 | 3.1kgf/cm2 | 4.1kgf/cm2 |
| Working layer | 3 layer (4 platens) | 3 layer (4 platens) | 3 layer (4 platens) |
| Opening/daylight | 120mm | 120mm | 120mm |
| Cylinder | 6-Φ85mm | 8-Φ85mm | 10-Φ85mm |
| Heating method | Electrical heating with thermal oil | Electrical heating with thermal oil | Electrical heating with thermal oil |
| Platen opening way | Automatic | Automatic | Automatic |
| Installed power | 77.5KW | 77.5KW | 77.5KW |
| Overall size | 4320x1710x2060mm | 4320x1710x2310mm | 4320x1710x2310mm |
| Weight | 9000kg | 9100kg | 9200kg |
| Model | BY214x8/12(5)H1RC | BY214x8/16(5)H1RC | BY214x9/16(5)H1RC |
| Total pressure | 120T | 160T | 160T |
| Working table size | 3000×1300 | 2500×1300 | 3000×1300 |
| Max pressure | 3.7kgf/cm2 | 5kgf/cm2 | 4.1kgf/cm2 |
| Working layer | 5 layer (6 platens) | 5 layer (6 platens) | 5 layer (6 platens) |
| Opening/daylight | 90mm | 90mm | 90mm |
| Cylinder | 8-Φ85mm | 10-Φ85mm | 10-Φ85mm |
| Heating method | Electrical heating with thermal oil | Electrical heating with thermal oil | Electrical heating with thermal oil |
| Platen opening way | Automatic | Automatic | Automatic |
| Installed power | 77.5KW | 77.5KW | 77.5KW |
| Overall size | 3820x1710x2290mm | 3820x1710x2290mm | 4320x1710x2490mm |
| Weight | 9600kg | 9800kg | 11500kg |
15 layers hot press machine
With in-feeding and outlet table
