Heavy Duty Thicknesser Planer

Heavy Duty Thicknesser Planer

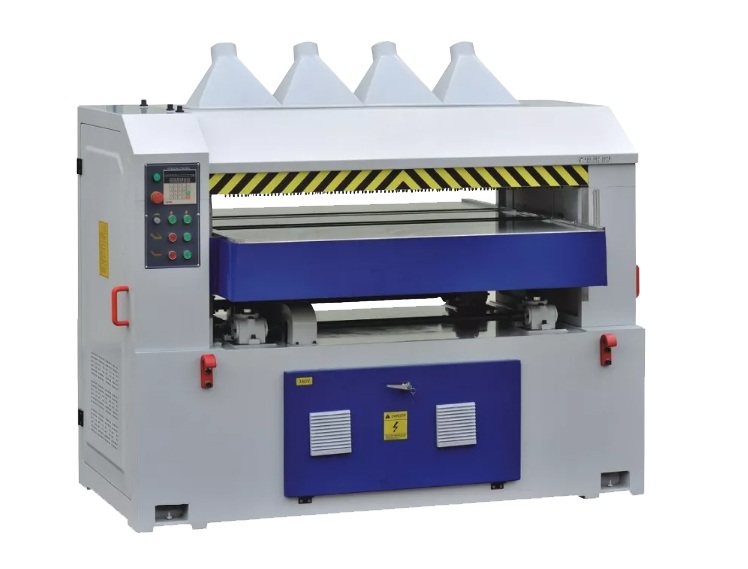

1300mm wide Heavy duty type

Features of heavy duty thicknesser planer:
1. Heavy duty structure design, running stable and more durable
2. Digital display and keyboard design for thickness setting, high precision and more convenient for operator
3. Spiral cutter shaft with 6 grooves blades can make sure low noise, smooth planning and high efficiency running 4. Machine is equipped inverter, the feeding speed can be adjusted accordingly to different wood species
5. Planer working table is supported by 4 pieces pillars, lifting stable and precision.

ModelCHZ106CHZ1013
Max working width630mm1300mm
Working thickness5-255mm10-150mm
Mini working length220mm400mm
Max cutting depth8mm8mm
Spindle diameter100mm180mm
Spindle speed5000r/min3500r/min
Feeding speed0-18m/min0-11m/min
Main motor power11KW22KW
Total weight1000kg3180kg
Overall size1350x1040x1500mm2000x1300x1700mm
630mm wide Heavy duty type
1300mm wide Heavy duty type
