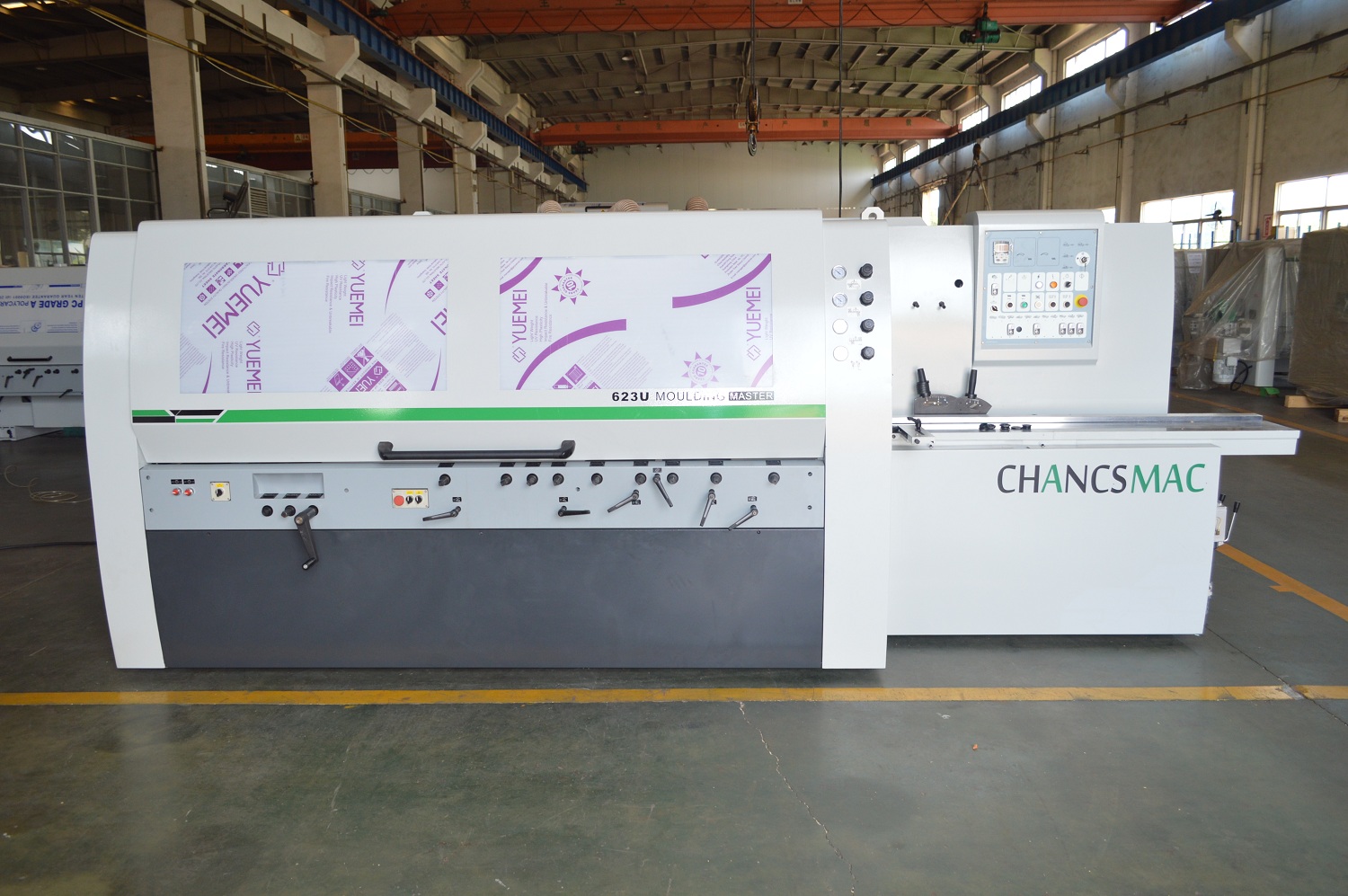

Four side moulder

Four side moulder is also named 4-side moulder or moulder. It is designed for timber 4 sides planning or profile processing with different shape.

According to number of spindles, moulder can be list as 4 spindles, 5 spindles, 6 spindles, 7 spindles. Customer can select the spindle arrangement. Universal spindles can be also selected to meet special requirement.

According to working width, moulder can be divided into

16 series (165mm wide and 100mm thick),

20 series (200mm wide and 120mm thick),

23 series (230mm wide and 120mm thick),

26 series (260mm wide and 180mm thick),

33 series (330mm wide and 230mm thick),

40 series (400mm wide and 300mm thick)

Here are features of moulder

1. High quality on wood processing: Step-less variable speed (ABB brand inverter used in feeding system). Wood procession quality is highly assured.
2. Individual motor for each spindle to ensure maximum cutting. And the motor power
3. Convenient adjustment: All spindles adjustment are in frond of machine in order to adjust conveniently.
4. Hard chromed treatment table surface can be more durable and stable.
5. Chain-wheel box applied to guarantee feeding short pieces smoothly.
6. Feeding performance is enhanced by bottom driving bed rollers.
7. Pneumatic pressure loading to top feed rollers separately adjustable for easy of feeding stock with variation in thickness.
8. Manual lubrication to worktable and carriage, easy to centralized control and short cut
9. Sealed safety enclosure in moulder avoid splashing of wood chips and insulate the noises. Good for safe protection.
