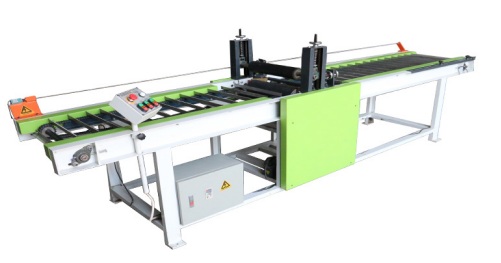

Chain type glue spreader
Max working width: 400mm
Working length: 2500mm
Working speed: 12m/min
Motor power: 0.4kw x 2
Chain type glue spreader is designed for solid wood slats or finger joint sticks glue spreading before edge glued panel laminating. Machine equip sensor to stop the feeding automatically. For safety consideration, there is safety rope which can stop machine immediately.
The gluing roller can forward and reverse. Then will be easier to clean the glue spreader safely.
| Model | CH-400 |
| Power | 3 phase 380V, 50Hz or customized |
| Max working width | 400mm |
| Diameter of roller | 130mm |
| Motor power | 0.4kw x 2 |
| Working speed | 12m/min |
| Pressing roller on the top | Options |
| Auto stop sensor | Including |
| Safety rope | Including |
| Overall size | 3500x900x1160mm |
| Weight | 350kg |
