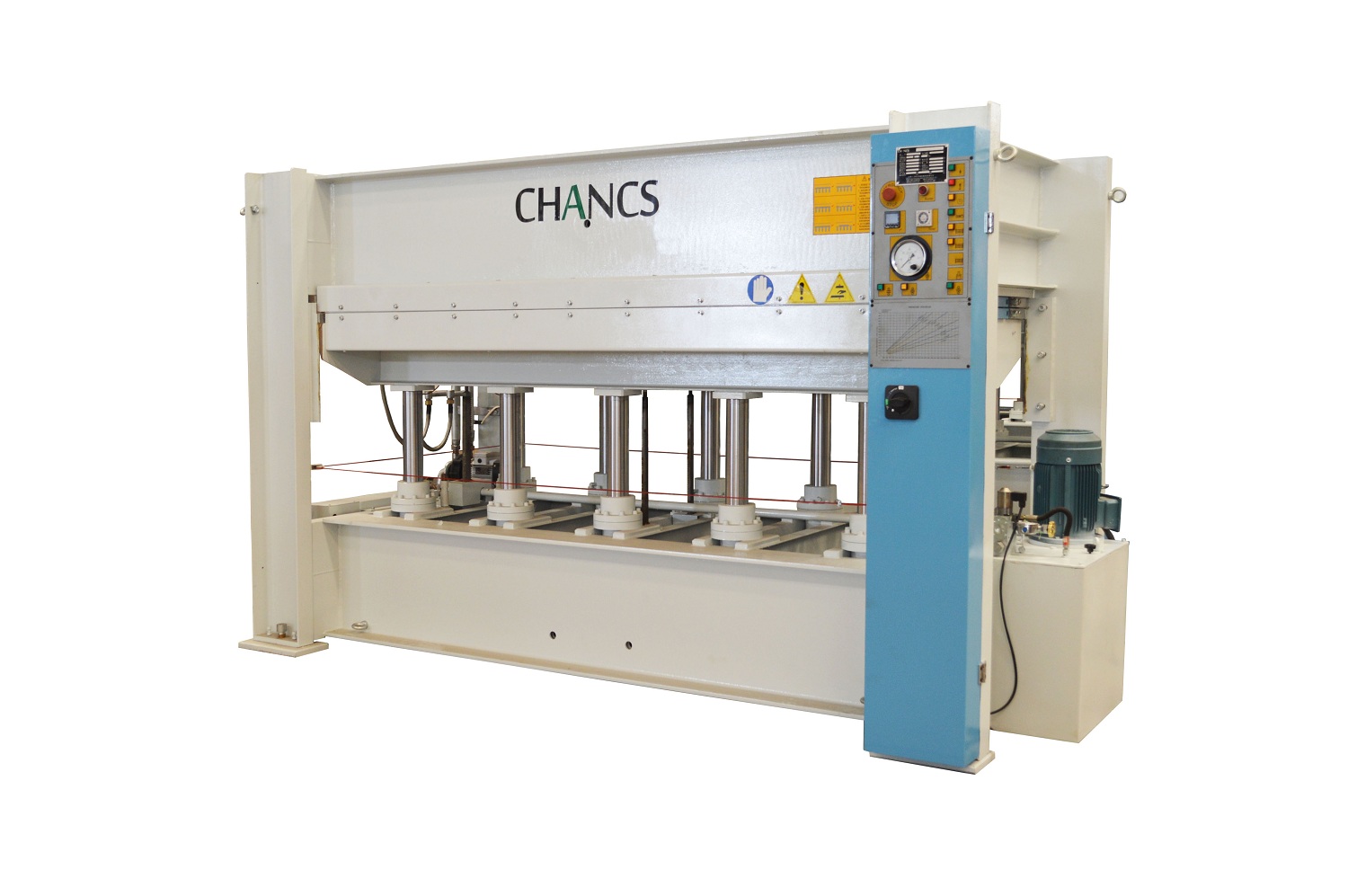

Single layer hot press
Working layer: 1 layer
Working pressure: 100T-200T
Working table size: 2500x1300mm, 3200x1300mm, 4000x1300mm
Laminating hot press is also called hot press machine or cover press machine. It is suitable for furniture and panel decorative factories to laminate all kinds of decorative paper, HPL or veneer on wooden door, core board, MDF, Plywood, chipboard etc. Veneer drying and leveling is also workable with cover press.
| Model | BY214x8/10(1)H1RC | BY214x8/12(1)H1RC | BY214x8/16(1)H1RC |
| Total pressure | 100T | 120T | 160T |
| Working table size | 2500×1300 | 2500×1300 | 2500×1300 |
| Max pressure | 3.1kgf/cm2 | 3.7kgf/cm2 | 4.9kgf/cm2 |
| Working layer | 1 layer (2 platens) | 1 layer (2 platens) | 1 layer (2 platens) |
| Opening/daylight | 380mm | 380mm | 360mm |
| Cylinder | 6-Φ85mm | 8-Φ85mm | 10-Φ85mm |
| Heating method | Electrical heating with thermal oil | Electrical heating with thermal oil | Electrical heating with thermal oil |
| Platen opening way | Automatic | Automatic | Automatic |
| Installed power | 28.75KW | 28.75KW | 28.75KW |
| Overall size | 3570x1660x2010mm | 3570x1660x2010mm | 3650x1710x2030mm |
| Weight | 4900kg | 5500kg | 6000kg |
| Model | BY214x10/12(1)H1RC | BY215x13/16(1)H1RC | BY214x8/16(1)H1RC |
| Total pressure | 120T | 160T | 200T |
| Working table size | 3200×1300 | 4000×1300 | 2700×1370 |
| Max pressure | 2.9kgf/cm2 | 2.8kgf/cm2 | 5.4kgf/cm2 |
| Working layer | 1 layer (2 platens) | 1 layer (2 platens) | 1 layer (2 platens) |
| Opening/daylight | 380mm | 300mm | 300mm |
| Cylinder | 8-Φ85mm | 12-Φ85mm | 5-Φ150mm |
| Heating method | Electrical heating with thermal oil | Electrical heating with thermal oil or with hot steam | Electrical heating with thermal oil |
| Platen opening way | Automatic | Automatic | Automatic |
| Installed power | 40.75KW | 4KW (Customer prepare hot steam) | 41.5KW |
| Overall size | 4520x1710x2310mm | 5350x1910x2320mm | 3700x1410x2680mm |
| Weight | 7000kg | 11200kg | 8700kg |
HAWE Hydraulic valve from German
SCHNEIDER components from France
Robust hydraulic system
Italy brand safety switch
Solid drilled hot platen
Durable circulating pump and motor
Working pressure diagram
